Roof and Wall Sheets : At Wrinkle Distributors Pvt. Ltd., we are proud to bring you the superior quality of TATA DURASHINE Roof and Wall Sheets. As the authorized distributor of TATA BlueScope Steel in Gujarat, we ensure that you receive the very best in roofing and walling solutions.
TATA DURASHINE Roof and Wall Sheets are a benchmark in the industry, renowned for their exceptional strength, durability, and aesthetic appeal. Manufactured using advanced technology, these sheets are crafted from premium steel and come with a protective coating that offers excellent resistance against corrosion, ensuring your structures stand the test of time. Whether you’re constructing a residential home, a commercial space, or an industrial facility, these sheets provide the ideal solution, combining functionality with elegance.
Available in a variety of profiles and vibrant colors, TATA DURASHINE Roof and Wall Sheets not only add to the visual appeal of your property but also provide robust protection against harsh weather conditions. The easy installation process and low maintenance requirements make them a preferred choice for architects, builders, and homeowners alike.
As the leading distributor in Gujarat, Wrinkle Distributors Pvt. Ltd. is committed to delivering these high-quality roofing and walling sheets with unmatched customer service, ensuring your project’s success from start to finish.
| Roof Specifications | |
|---|---|
| Total Painted Thickness (mm) | 0.37 / 0.47 / 0.52 / 0.62 |
| Sheet Lenght* (mm) | 2440(8ft), 3050(10ft), 3660(12ft), 4270(14ft), 4880(16ft), 5490(18ft), 5490(20ft), 6100(22ft), 7320(24ft), |

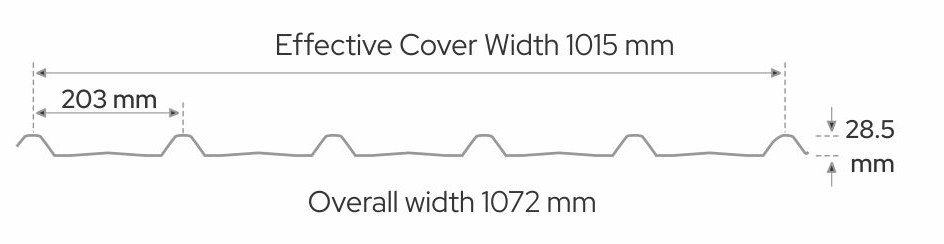

| Effective cover width (mm) | nominal 1015 |
| Overall width (mm) | nominal 1072 |
| Minimum roof slope (degrees) | 5 |
| Maximum Support Spacing (mm)* | ||
|---|---|---|
| Type Of Span | Roof | Wall |
| Single | 950 | 1700 |
| End | 1200 | 2450 |
| Internal Span | 1750 | 2850 |

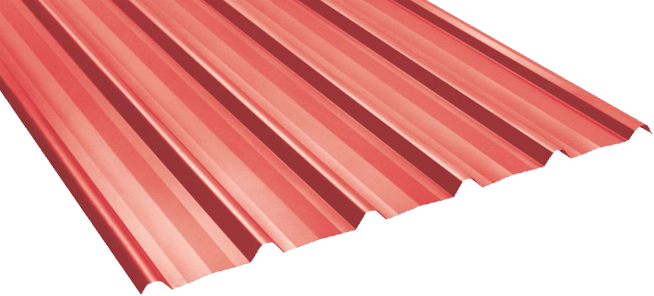

Anti-capillary Groove: Anti-capillary Groove ensure leak-proof performance
Wider Valleys: Wider Valleys ensure higher water discharge during heavy rains
| Wall Specifications | |
|---|---|
| Total Painted Thickness (mm) | 0.37 / 0.47 / 0.52 / 0.62 |
| Sheet Lenght* (mm) | 2440(8ft), 3050(10ft), 3660(12ft), 4270(14ft), 4880(16ft), 5490(18ft), 5490(20ft), 6100(22ft), 7320(24ft), |

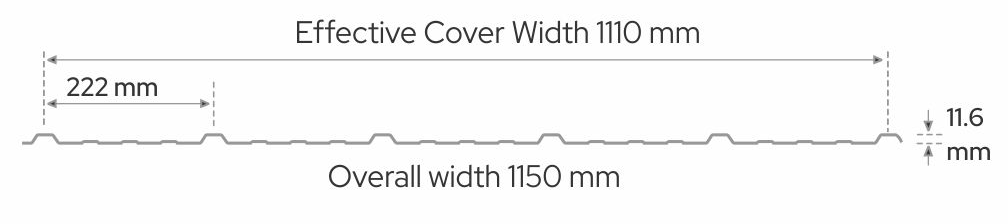

| Effective cover width (mm) | nominal 1110 |
| Overall width (mm) | nominal 1150 |
| Maximum Support Spacing (mm)* | ||
|---|---|---|
| Type Of Span | Wall | |
| Single Span | 1150 | |
| End Span | 1500 | |
| Internal Span | 1650 | |

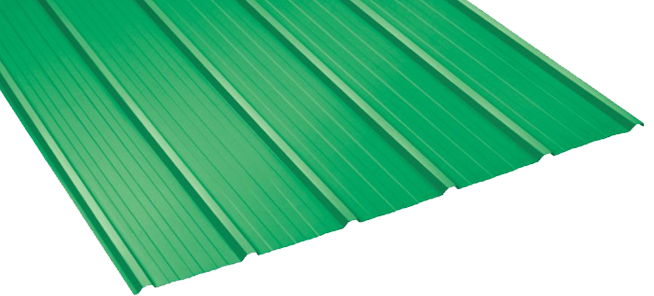

Widest Profile: DURASHINE® Wall is one of the Widest wall profile sheets available
Which is also quick and easy to install
